Ohio Smoke Test

Instructions

Instructions for Running and Reviewing Spills

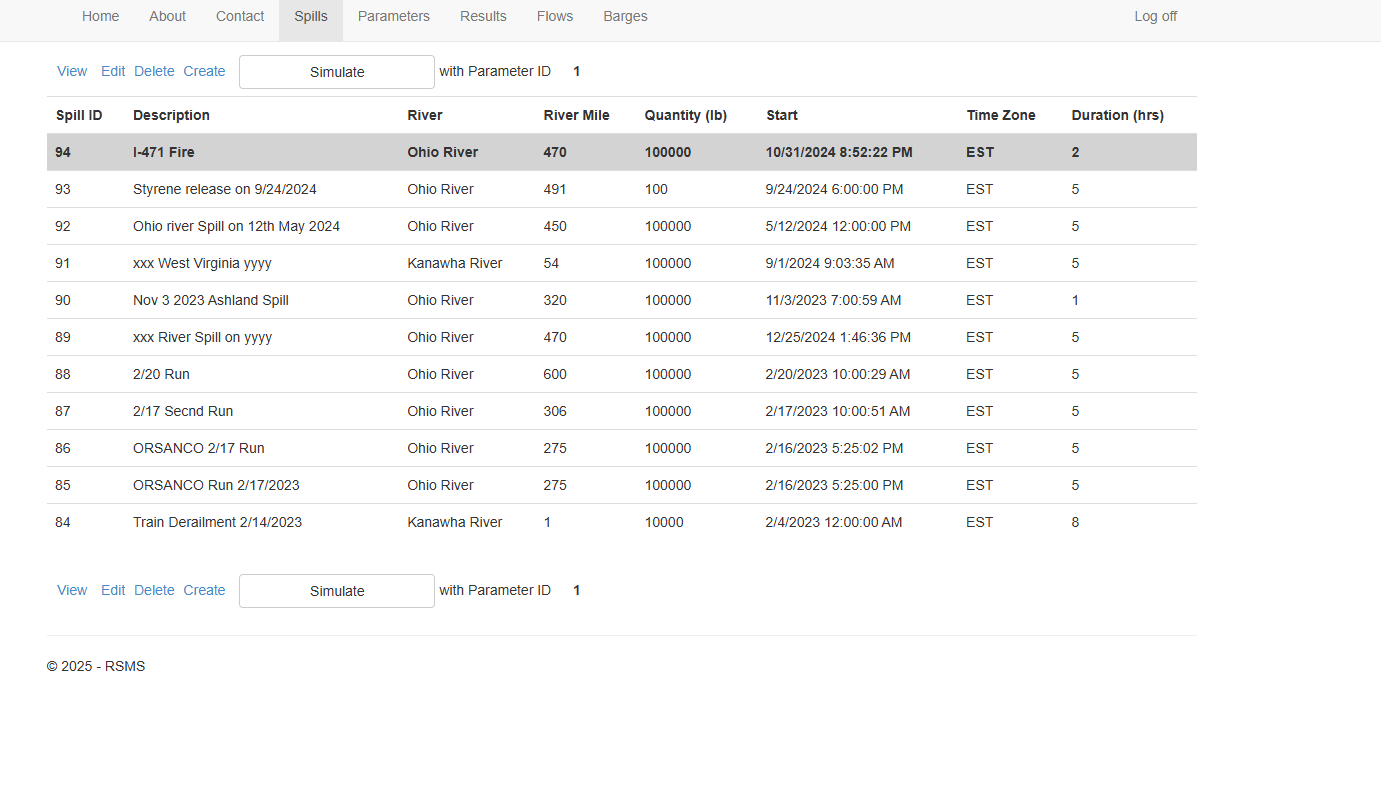

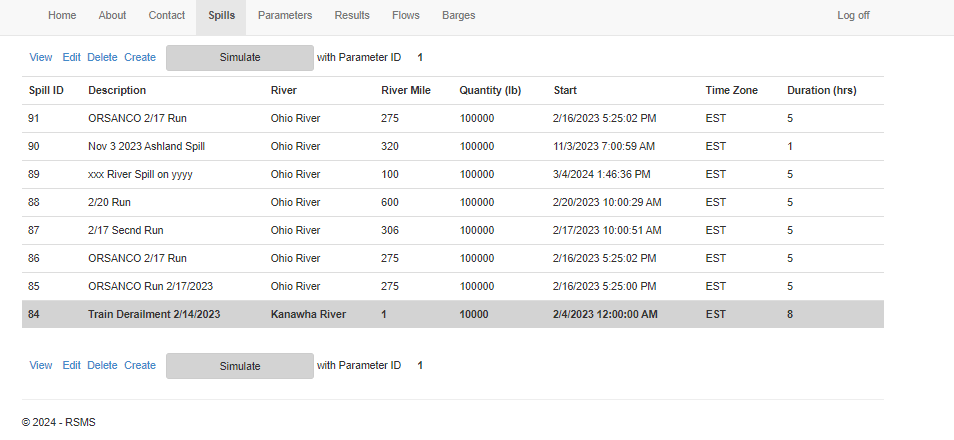

1. Navigate to the Spills Page

• Select a spill from the list.

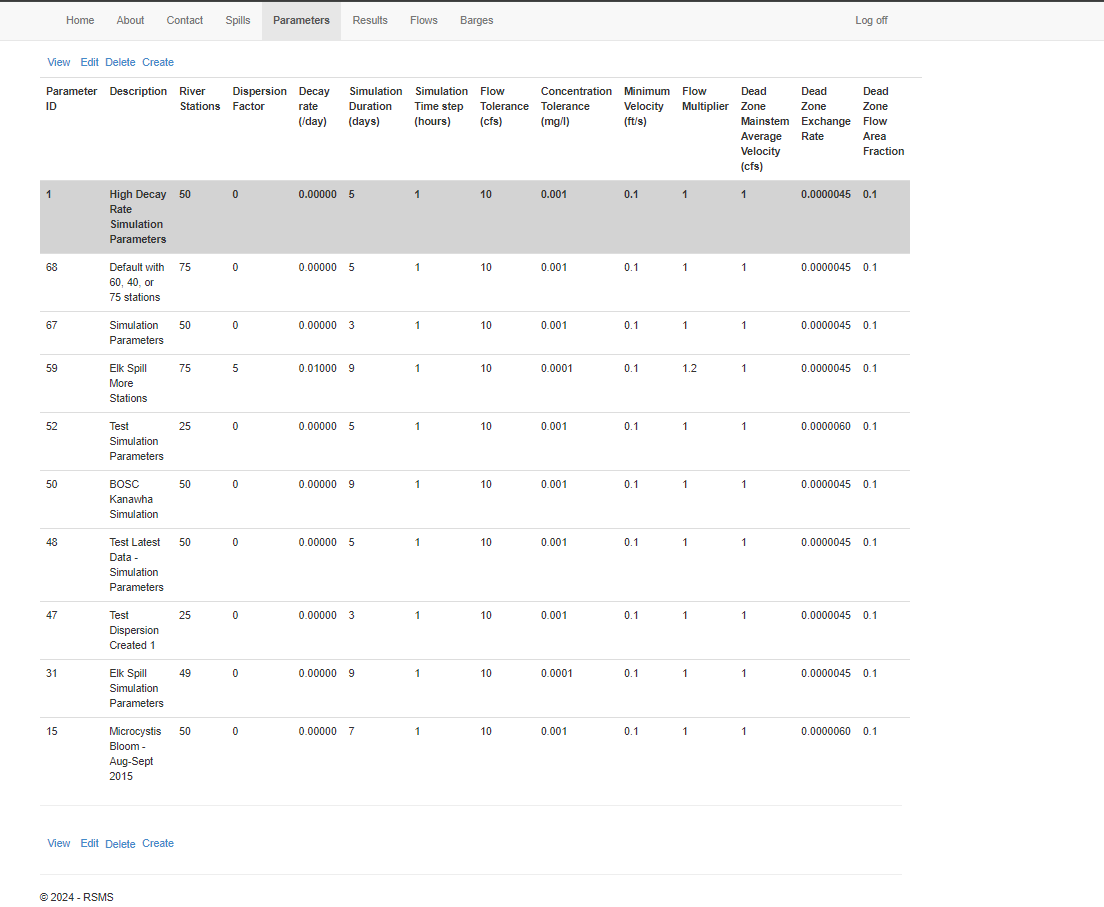

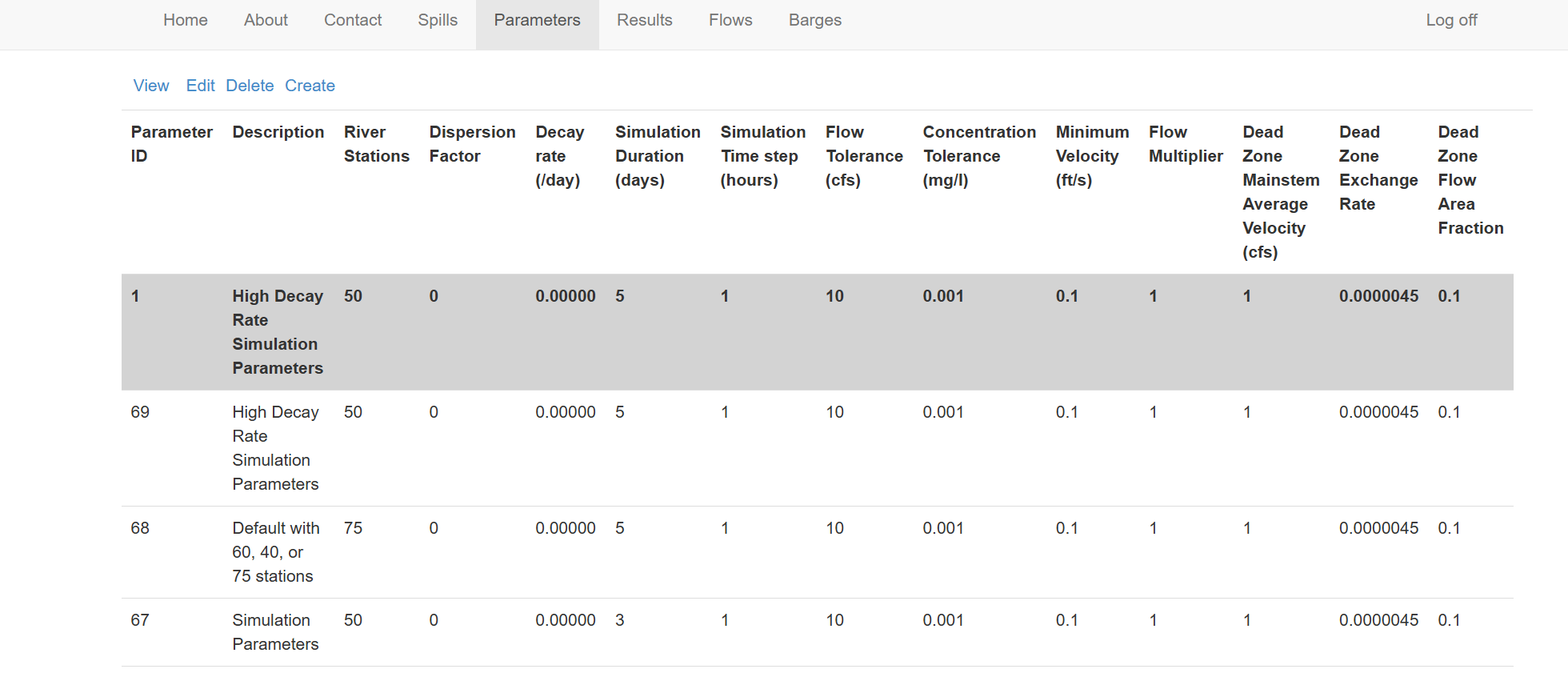

2. Set Parameters

• Go to the Parameters page and select the desired parameter for your spill.

3. Run the Spill

• Return to the Spills page and initiate the spill process.
• Remain on this page until you receive a confirmation message indicating that the spill is complete.
• You will then be redirected to the Results page automatically.

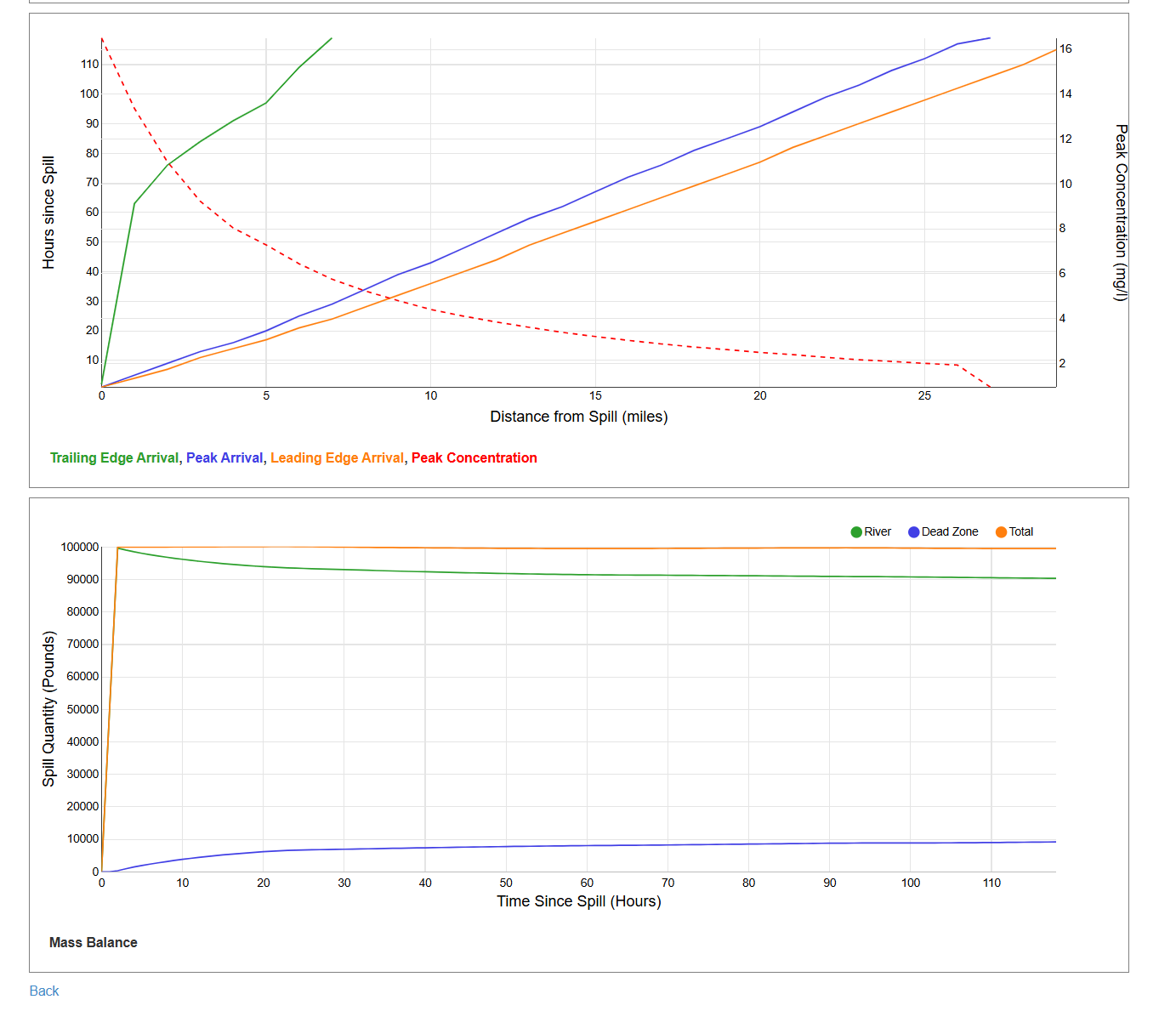

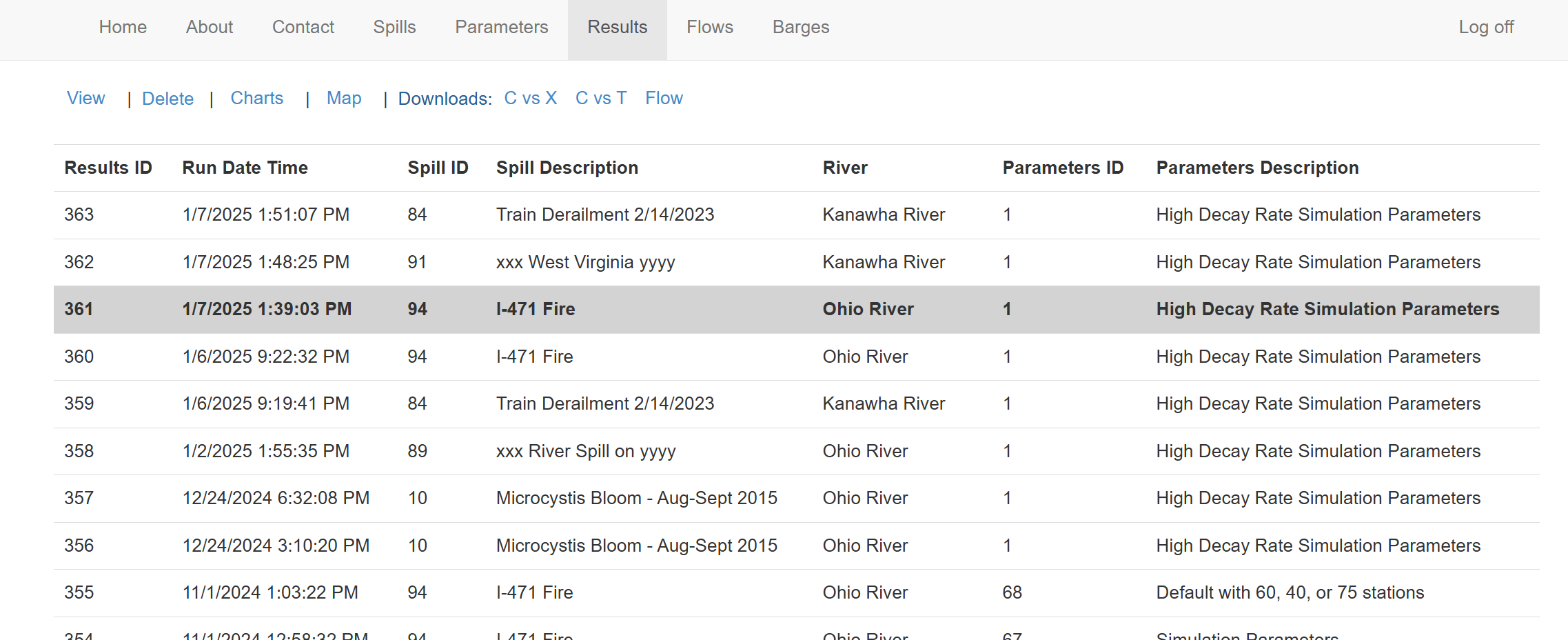

4. Review the Results

• On the Results page, review the charts generated for your spill.
• Ensure the results are consistent with the expected outcomes, such as the example charts provided below.

5. Inspect Tributary Spills

• Pay close attention to tributary spills, particularly where they flow into the mainstem.
• Look for a noticeable change in concentration at the confluence.
• Ensure your tributary spill reaches the mainstem as expected.

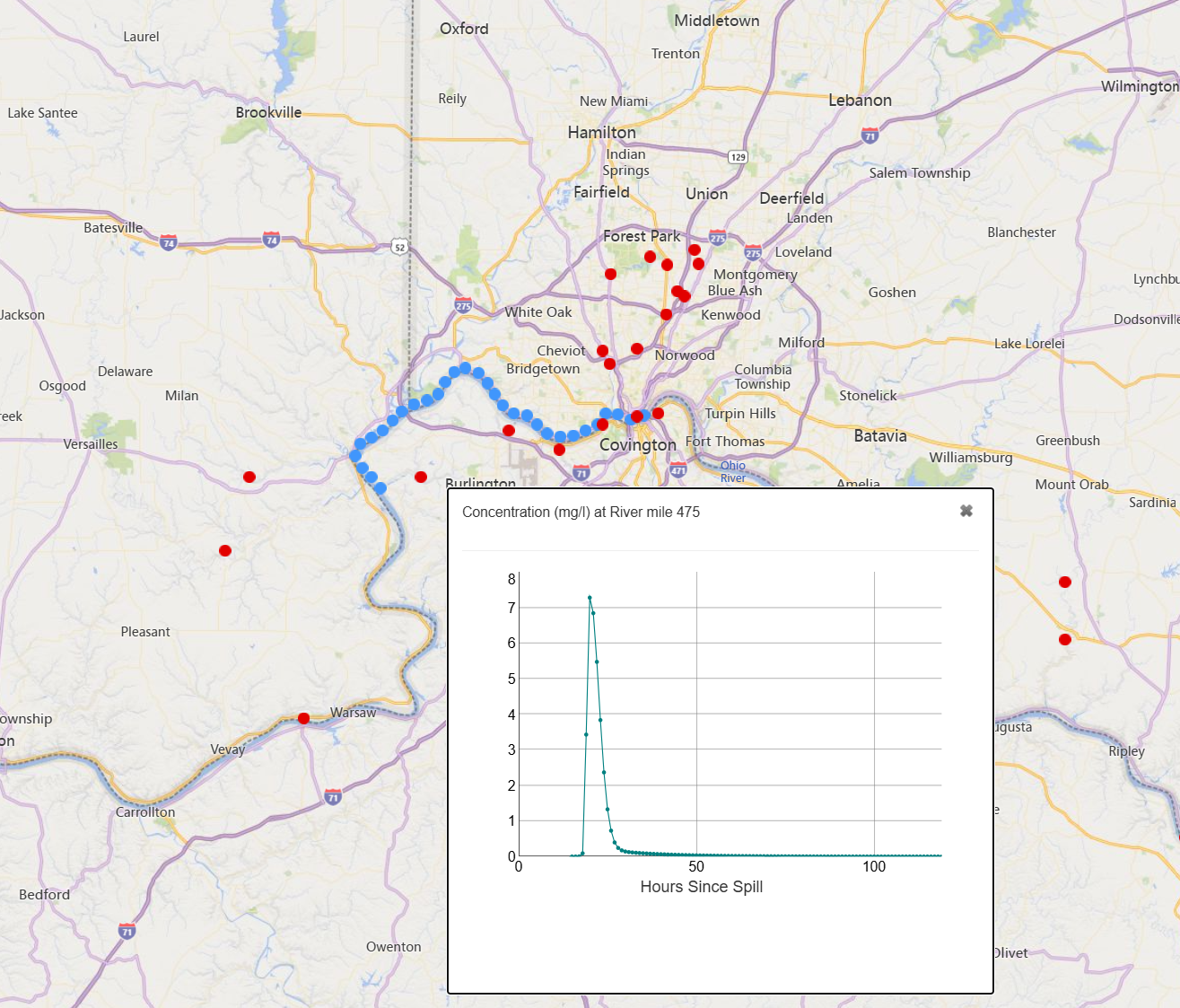

6. Check the Spill Map

• Navigate to the Map page to verify your spill on the map.
• Ensure the pop-up charts at each river station are accurate and reflect the expected data.

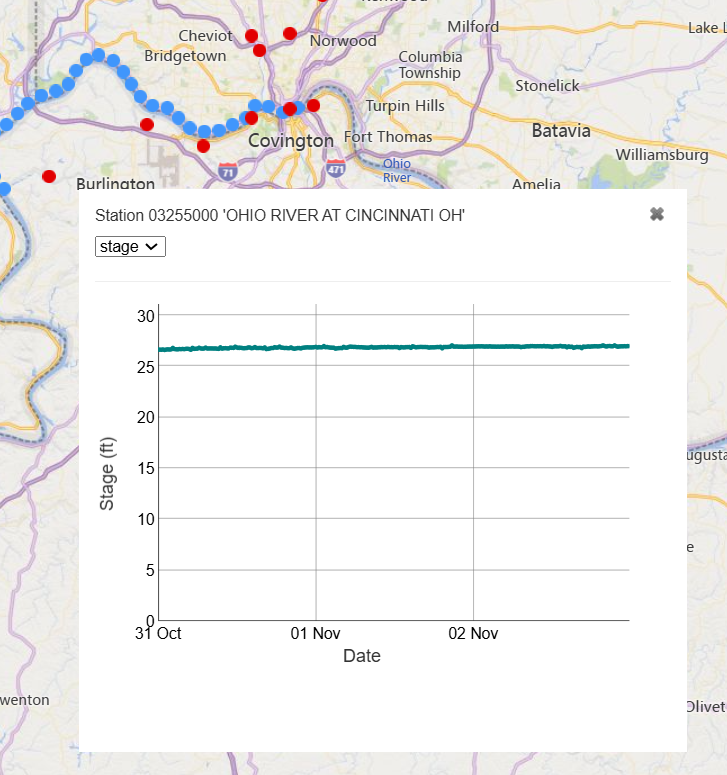

7. Verify USGS Station Data

• Confirm that USGS station data appears on the map.
• If no data is available, a message will indicate this.
• Focus on USGS stations in major cities, as these are more likely to have available data.

8. Download Data Files

• Download the following files for further analysis:
  • C vs X
  • C vs T
  • Flow Data
• Verify that all files downloaded correctly and are accessible.

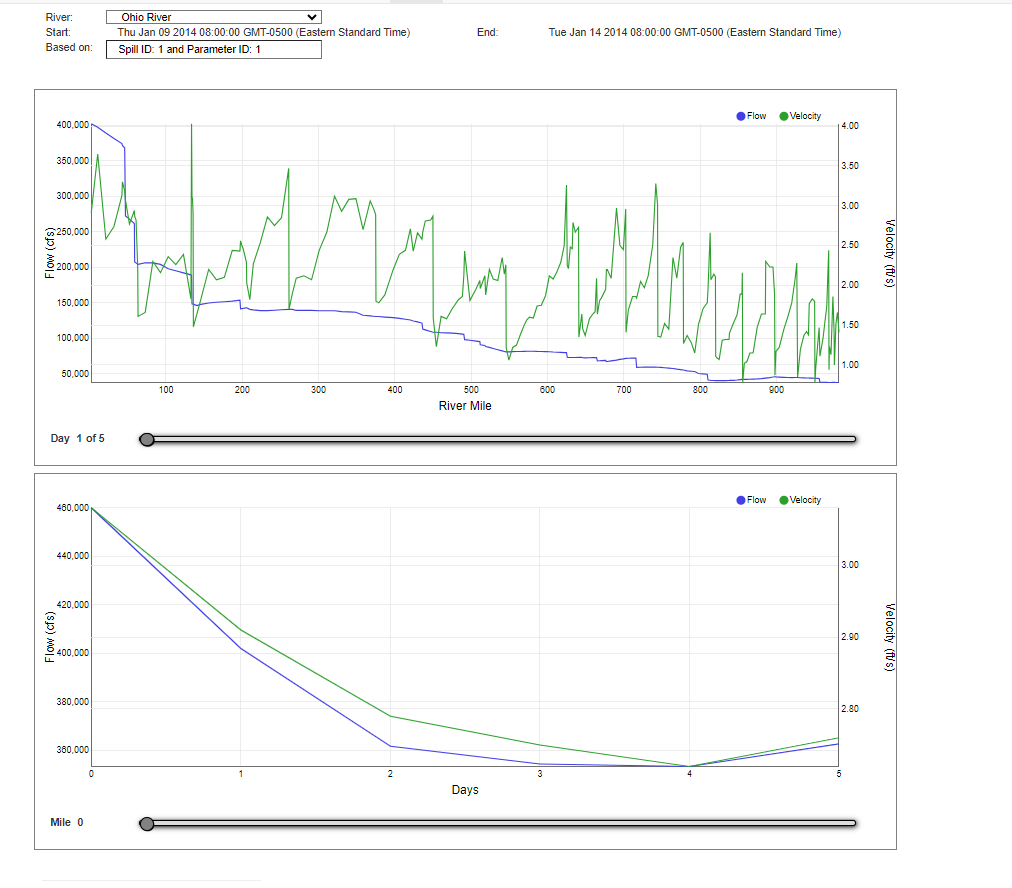

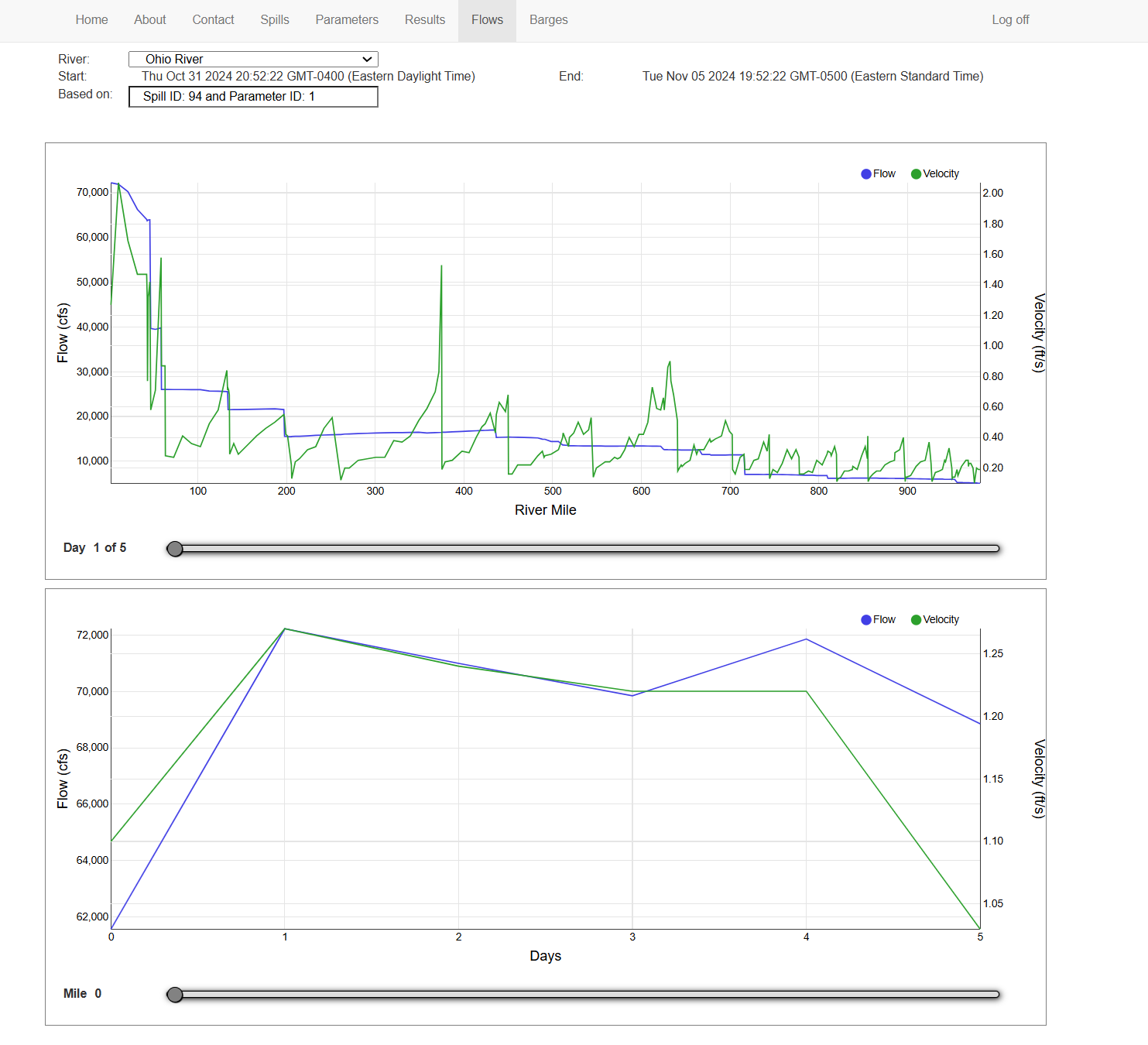

9. Validate Flow Charts and Data

• Check the flow charts and confirm the date of the last recorded data from the flows data downloader.
• The date should be either today or yesterday.
• If reviewing on a Monday, the last recorded date might be from the previous Friday.
• Report any discrepancies in the flow data.

10. Check Barge Functionality

• Ensure that the barge functionality is working correctly and as expected.

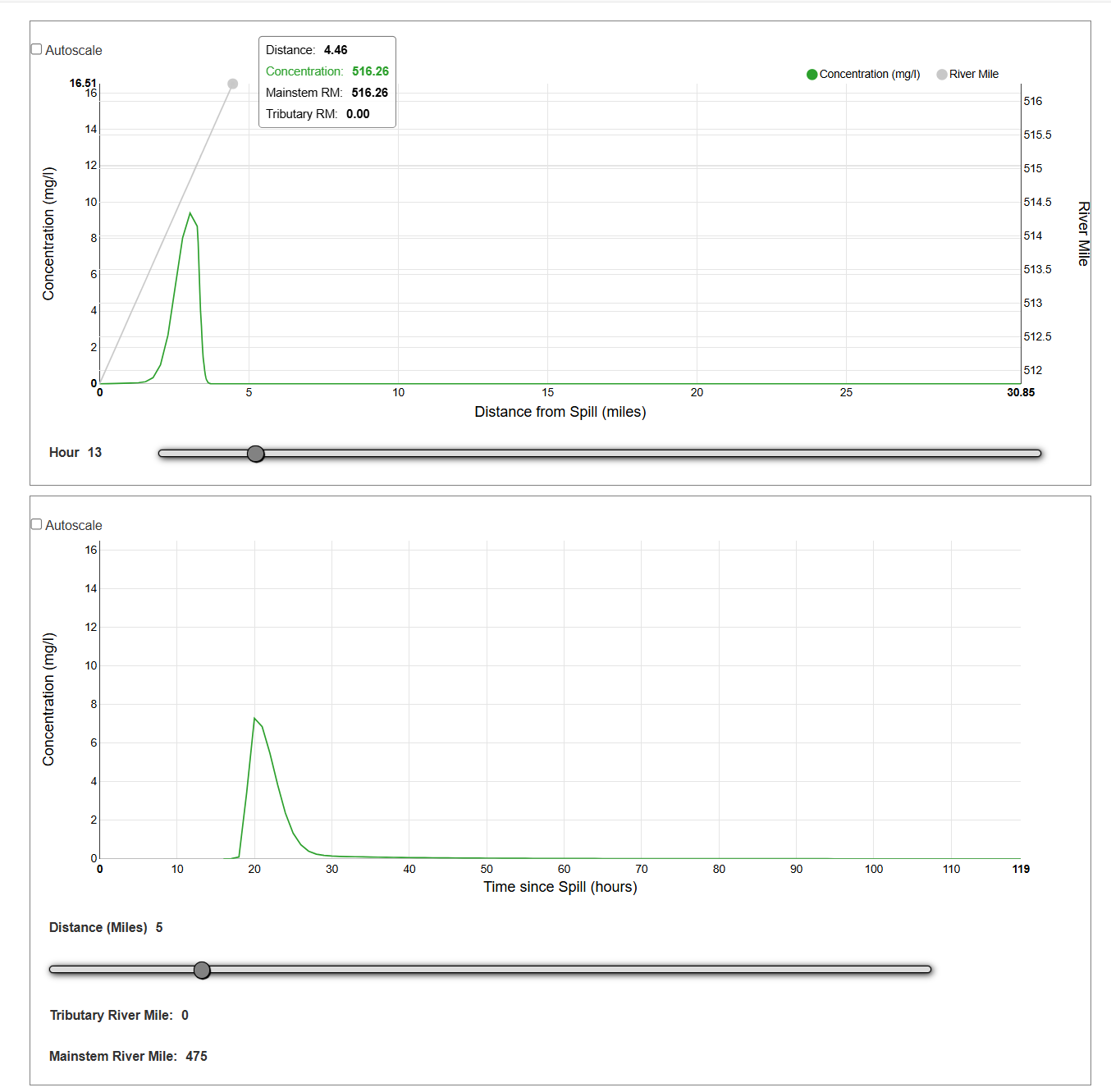

Tributary Spill

danger

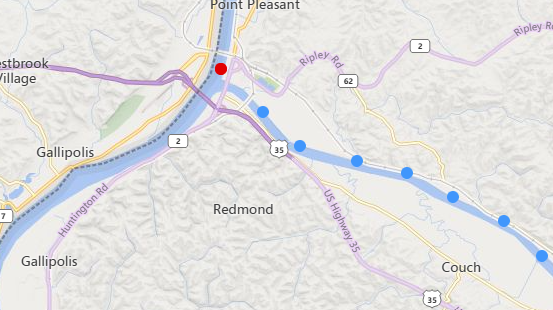

Use a tributary that will empty out on the Mainstem. This is an example where it stops before entering the Mainstem. It does not make a good smoke test.

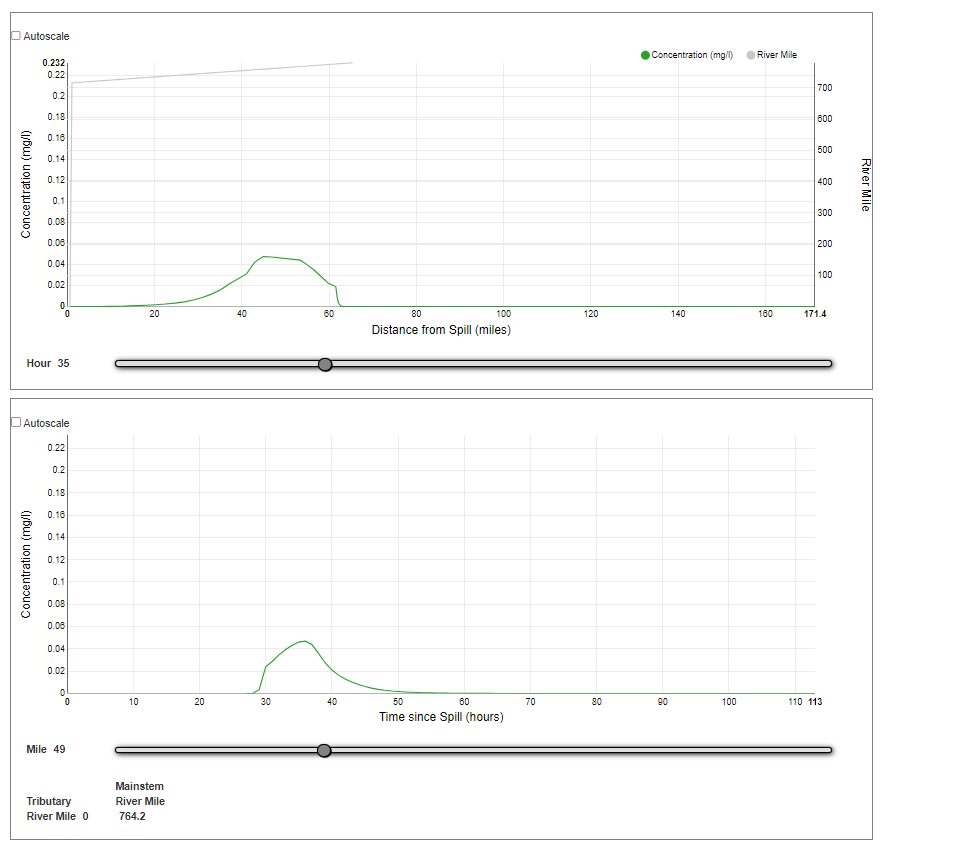

Main Stem spill
